Mavaro 5 Low StepThru

SEK 33,999

Dust Blue
  • SM

  • MD

  • LG
What's my size?
sizing dialogue entered Close

Tell us how tall you are, we'll help you find the right size.

  • @Html.Sitecore().DictionaryEx("/PDP/Sizing/Size", "Size*"): SM
    4'11" 149
    5'7" 170
  • @Html.Sitecore().DictionaryEx("/PDP/Sizing/Size", "Size*"): MD
    5'5" 165
    6'1" 185
  • @Html.Sitecore().DictionaryEx("/PDP/Sizing/Size", "Size*"): LG
    5'11" 180
    6'7" 200

Long arms? Short Legs? Just not sure? Contact your local dealer!

Some models run larger than others. Customer Service can help you identify a size more specific to your body type.
Close
Search

    Movement That Moves You

    An e-bike that elevates the art of getting around. Function meets pleasure. Comfort meets capability. Speed meets style. From point A to point B, or to no point in particular – it's your best way there.

    Model Description

    This comfortable, capable e-bike is crafted to make moving through the city fast, easy, and fun. It features our light and durable SmartForm C2 Alloy frame construction, in a convenient low step-thru design. It’s powered by Bosch’s reliable Active Line motor and a 500Wh battery, providing ample range at a reasonable weight, while Shimano’s CUES 9-speed group delivers smooth shifts and a wide gear range. Everything you need for errands, commutes, and joyrides.

    What it's for

    Commuting through the city, running errands, feeling good.

    Highlights

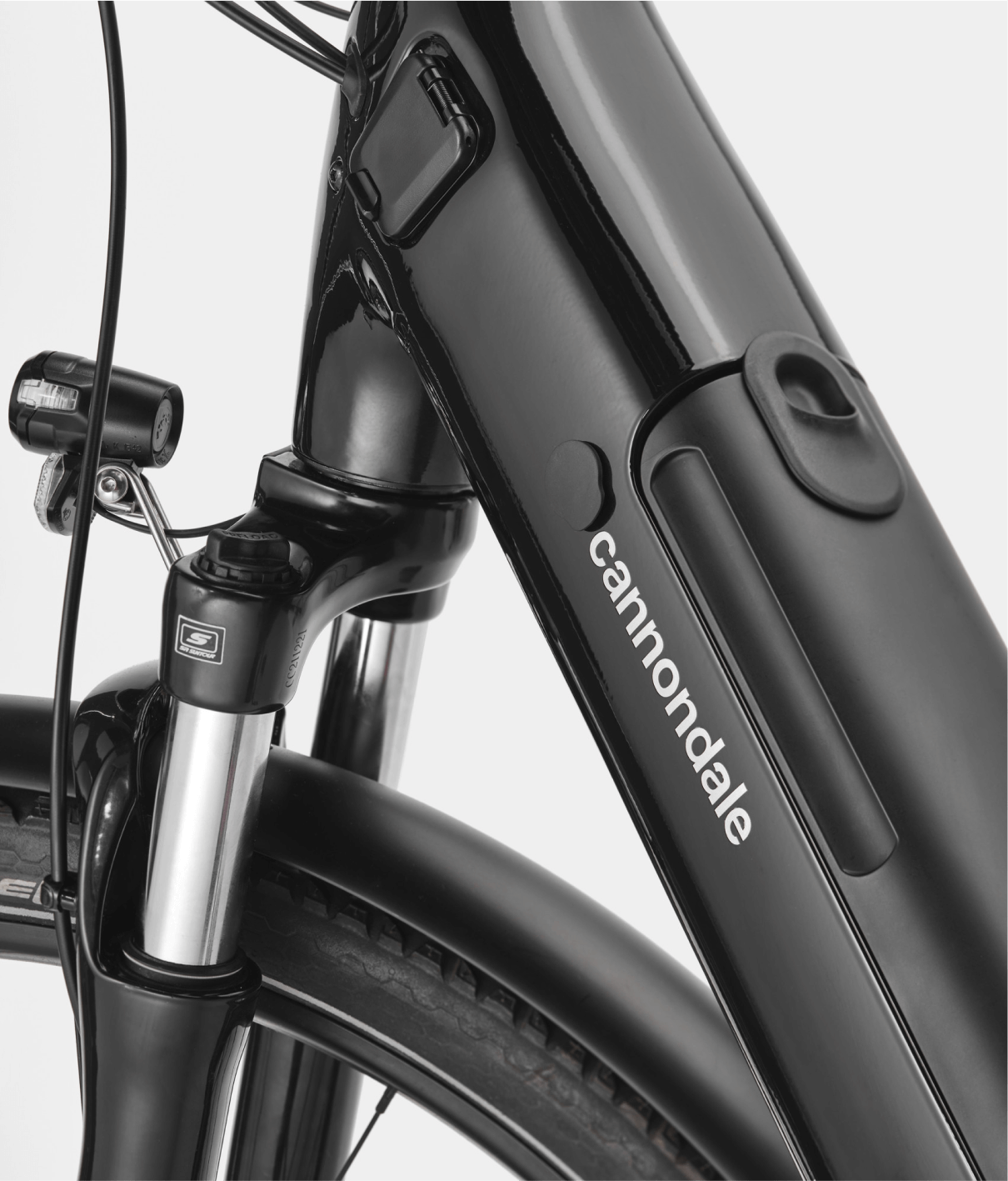

    • SmartForm C2 Alloy frame is lightweight, yet durable, with integrated headtube reflector.
    • Smooth and quiet Bosch Active Line Drive Unit with up to 40Nm of torque and 250% max support.
    • 500Wh Bosch PowerTube Battery for a great balance of range and weight.
    • Shimano CUES 9-speed drivetrain offers smooth, dependable shifting.
    • SR Suntour Mobie fork smooths the way with 63mm of front suspension.

    Movement That Moves You

    Power

    Bosch's new Smart System Active Line drive unit and 500Wh battery provide effortless power.

    Speed

    This e-bike drive system provides pedal assist up to a maximum speed of 25km/h. Above that, it’s all you.

    Range

    Up to 110km of assisted range mean you can go to – and come back from – just about anywhere.

    Premium Electric Experience

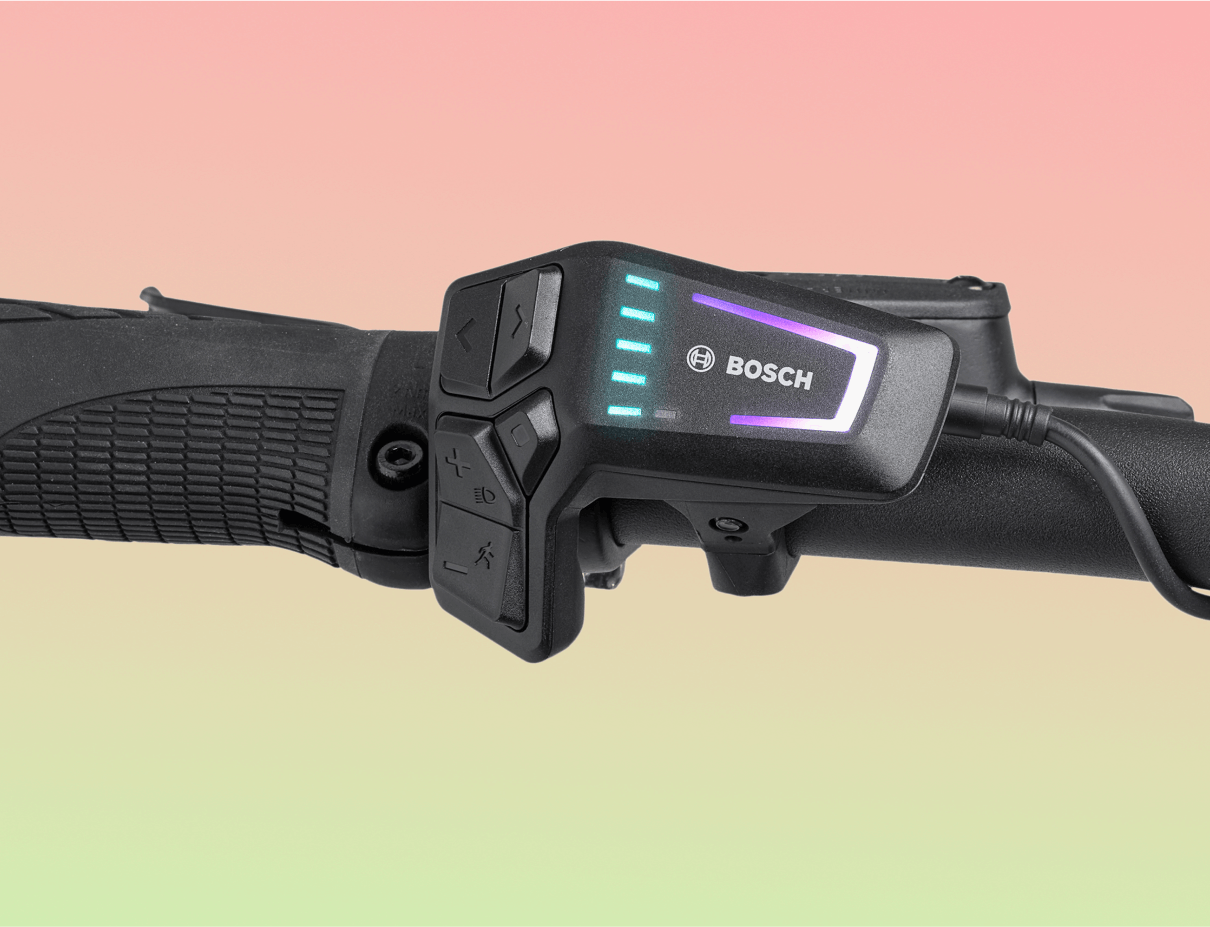

    Mavaro 5 is powered by the new Bosch Active Line drive unit, packing a 500Wh battery, boosting your power up to 110%, with a Bosch LED remote display on the handlebar. Effortless acceleration, compelling versatility, and a range of up to 110km on a single charge.
    Roll Smoothly

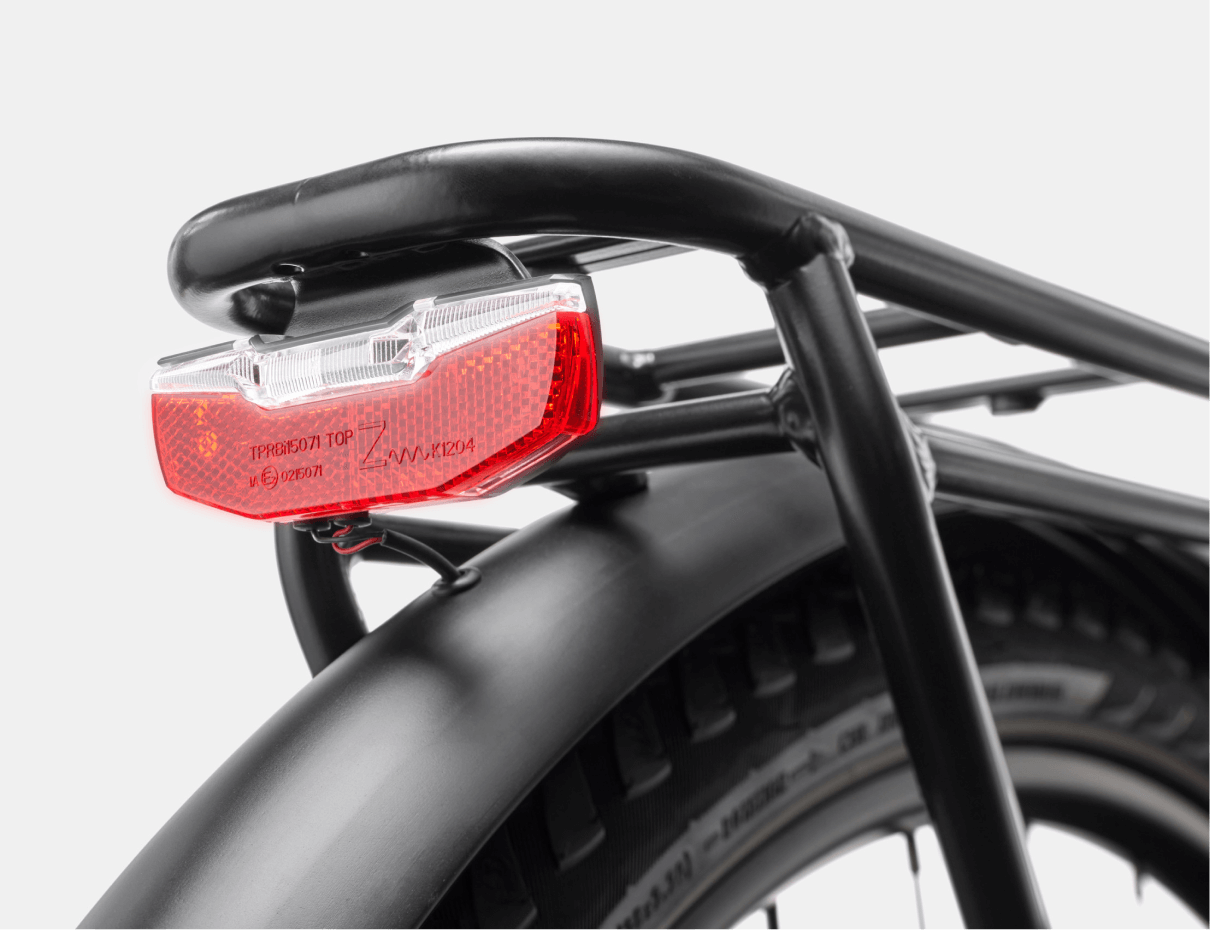

    With its smooth 63mm travel fork, alloy fenders, high-capacity rear rack (Racktime ready), bright front and rear lights, comfort handlebars and low gearing – the new Mavaro 5 is your commuting partner.
    Clean, Quiet and Easy
    Everything on the Mavaro was engineered to maximize riding enjoyment. The comfortable riding position and impressively stable handling. Bright integrated lights to both see and be seen. It all adds up to a beautifully serene riding experience.

    Features

    Low Step-Thru

    Available in the low step-thru design variant. Our expert aluminum craftsmanship delivers a robust, beautiful, and confidence-inspiring ride.

    Specs

    Details

    • Platform
      Mavaro Neo
    • Model Name
      Mavaro 5 Low StepThru
    • Model Code
      C68023U

    Frameset

    • Frame
      SmartForm C2 Alloy, low step-thru, removable 625Wh downtube battery, integrated headtube reflector, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
    • Fork
      SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
    • Headset
      Semi-Integrated, Tapered; 1-1/8"-1-1/2"

    E-System

    • Drive Unit
      Bosch Active Line Smart System, 25 km/h
    • Battery
      Bosch PowerTube, 500Wh
    • Charger
      Bosch 2A
    • Display
      Bosch LED remote

    Drivetrain

    • Rear Derailleur
      Shimano CUES 4020
    • Shifters
      Shimano CUES 4000, 9-speed
    • Chain
      KMC E500
    • Crank
      FSA for Bosch
    • Rear Cogs
      Shimano CUES 400, 11-36, 9-speed

    Brakes

    • Brakes
      Shimano MT400 hydraulic disc, 180/180mm RT30 rotors
    • Brake Levers
      Shimano MT400 hydraulic disc

    Wheels

    • Rims
      Alloy, double wall, 32 hole, 25mm internal width, disc-specific
    • Spokes
      Stainless Steel, 14g
    • Tire Size
      2.2
    • Wheel Size
      27.5"/29"
    • Hubs
      (F) Shimano MT400B, 110x15mm thru-axle / (R) Shimano UR600, 135QR
    • Tires
      Continental eContact Plus w/ reflective sidewalls 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-XL)

    Components

    • Handlebar
      Cannondale Low-Rise Urban, butted 6061 Alloy, 31.8mm, 25mm rise, 35° sweep, 680mm
    • Stem
      Cannondale 3, Alloy, 31.8mm clamp
    • Grips
      Cannondale Ergo Fitness Dual Density, Lock-on
    • Saddle
      Selle Royal Vivo Active
    • Seatpost
      Cannondale 3, 6061 Alloy, 31.6

    Please note that, based on component availability and other factors, specifications are subject to change without notice.

    Geometry

    See Electric City Bikes
