Best of Both Handling
OutFront steering geometry offers drama-free stability on technical cyclocross courses and potholed streets but maintains quick-handling agility, thanks to short chainstays, everywhere else.
sizing dialogue entered
Close
Tell us how tall you are, we'll help you find the right size.
Long arms? Short Legs? Just not sure? Call us!
Some models run larger than others. Customer Service can help you identify a size more specific to your body type. Call 1-800-245-3872.
'Cross Trainer
A performance cyclocross bike from a title-winning bloodline: your new favorite cyclocross racer, gravel bike, winter trainer, and beyond.
Where it thrives
Gravel roads, In competition, Out in the elements
What it's built for
Handling, Endurance, Traction
Highlights
- Light, durable SmartForm C2 Alloy Frame w/ full carbon fork
- microSHIFT Advent X, 10-speed shifting / FSA crank, 40t
- Promax Decoder R mechanical disc brakes
SuperX DNA.
Sharing the same race pedigree and proven geometry as our cyclocross champion, the SuperX, the all-new CAADX is a legitimately fast and fun cyclocross racer, gravel pounder, go-anywhere adventure bike.
Stay OutFront.
The combination of OutFront Steering Geometry and short chain stays delivers drama-free stability and surprising agility on everything from technical cyclocross courses to potholed streets.
Stiff. Light. Fast.
An evolved frame layout with bump-smoothing SAVE micro-suspension and a new rear thru-axle gives you comfort and compliance in the rough stuff and the stiffness to rule the climbs.
Technology
Light and Smooth
SmartForm C2 Alloy Construction and a full carbon fork keep it light and easy to shoulder, while SAVE micro-suspension helps you track smoothly through the rough stuff.
Sweet Versatility
Subtle rack mounts, a removable seatstay fender mount and hidden fork fender mounts expand its usability without affecting its racy looks.
Big Tire Clearance
Room to run up to 37mm tires to tackle the roughest gravel roads with confidence or sail over the pavement in ultimate comfort.
Thru-Axles Front to Back
Thru-axles enhance chassis stiffness for precise handling and explosive power.
Specs
Details
-
Platform
-
Model NameCAADX 2
-
Model CodeC16201M
Frameset
-
FrameSmartForm C2 Alloy, BB30, flat mount disc, 12x142mm thru-axle
-
ForkBallisTec Full Carbon, 12x100mm thru-axle, 1-1/4" to 1-1/8" tapered steerer, flat mount disc
-
Headset1-1/4" lower bearing, 25mm top cap
Drivetrain
-
Rear DerailleurmicroSHIFT Advent X
-
ShiftersmicroSHIFT Advent X, 10-speed
-
ChainKMC X10, 10-speed
-
CrankFSA Vero Pro, 40T
-
Rear CogsmicroSHIFT, 11-48, 10-speed
-
Bottom BracketCannondale BB30
Brakes
-
BrakesPromax Decoder R mechanical disc, 160/160mm rotors
-
Brake LeversmicroSHIFT Advent X
Wheels
-
Front HubFormula alloy, 12x100mm
-
Rear HubFormula alloy, 12x142mm
-
Brake TypeDisc
-
RimsCannondale CX 2.0 Disc, 28h
-
SpokesStainless Steel, 14g
-
Tire Size35
-
Wheel Size700c
-
TiresSchwalbe CX Comp, 700x35c, K-Guard
Components
-
HandlebarCannondale 3, 6061 alloy, Compact
-
StemCannondale 3, 6061 Alloy, 31.8, 7°
-
GripsCannondale Bar Tape, 3.5mm
-
SaddleCannondale Stage CX
-
SeatpostCannondale 4, 6061 Alloy, 27.2x350mm (46-58), 400mm (61)
Extra
-
Extra 1Removable fender bridge, custom Cannondale mud guard
Please note that, based on component availability and other factors, specifications are subject to change without notice.

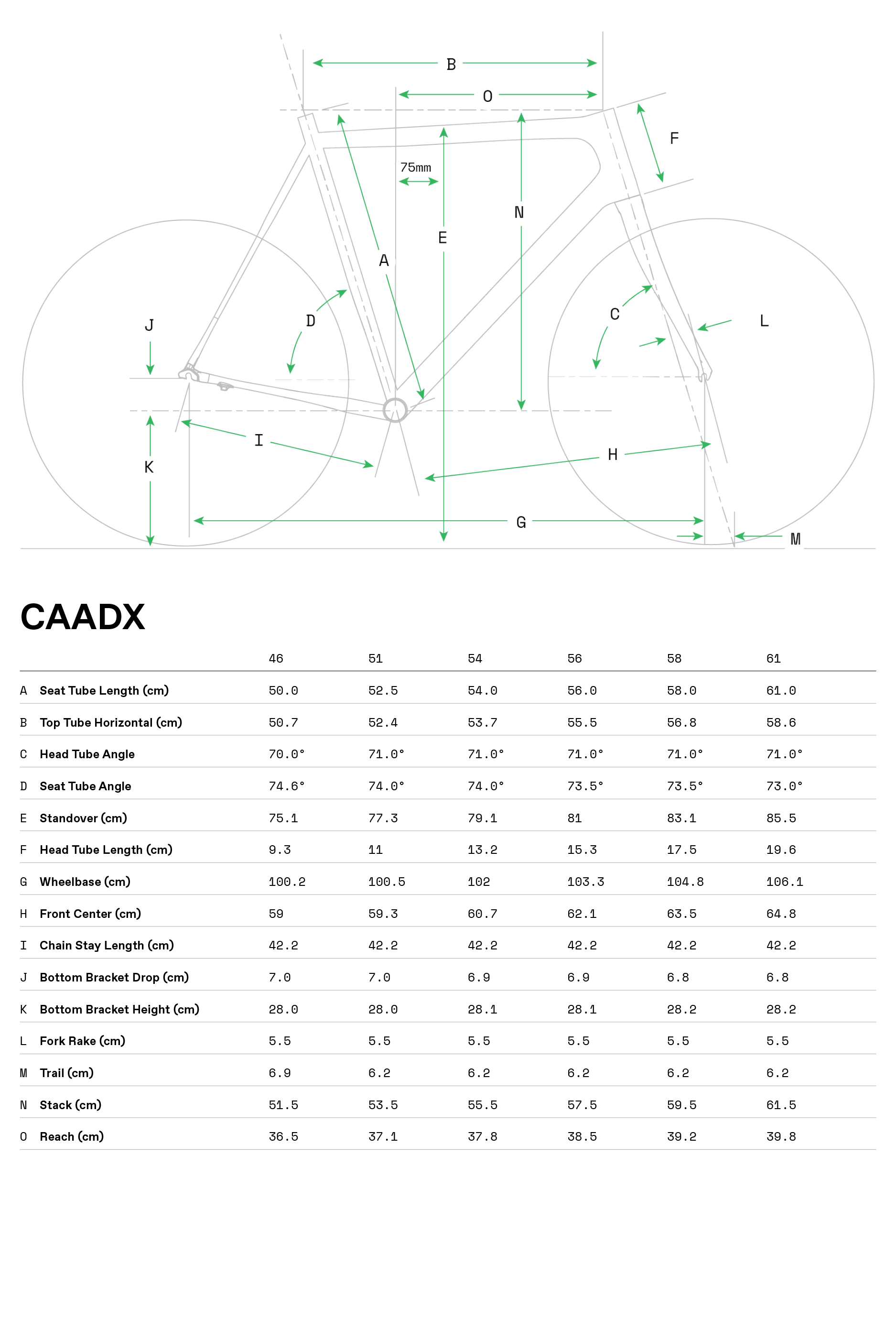

Geometry
